DFS Pipe / Hose Floats 110-650 mm
DFS PIPE / HOSE Floats are of an unique design.
This unique design is accepting any pipe or hose from Ø110 mm to Ø650 mm.
We deliver polyethylene floats for dredging applications and multi purpose use. All our floats are filled with polystyrene for best buoyancy.
Operating temperature is from -40°C to + 60°C, UV resistant.
DFS PIPE / HOSE Floats are of an unique design.
This unique design is accepting any pipe or hose from Ø110 mm to Ø650 mm
product details:
|
Type |
Min/Max Ø |
Max Ø |
Sink load |
Length, mm |
Weight, kg |
Mount |
|
Float ID 110 - 150 |
110/150 |
500 |
90 (60) |
600 |
10 |
Belt |
|
Float ID 150 - 160 |
150/160 |
500 |
90 (60) |
600 |
10 |
Belt |
|
Float ID 160 - 220 |
160/220 |
500 |
170 (115) |
1200 |
14 |
Belt |
|
Float ID 220 - 280 |
220/280 |
600 |
250 (175) |
1200 |
24 |
Belt |
|
Float ID 300 - 400 |
300/400 |
940 |
610 (410) |
1200 |
33 |
Belt |
|
Float ID 420 - 650 |
420/650 |
1200 |
986 (658) |
1250 |
70 |
Belt |
* Only bigger part is filled with Polystyrene, but Float 420-650 has both parts filled.
We deliver polyethylene floats for dredging applications and multi purpose use. All our floats are filled with polystyrene for best buoyancy.
Operating temperature is from -40°C to + 60°C, UV resistant.

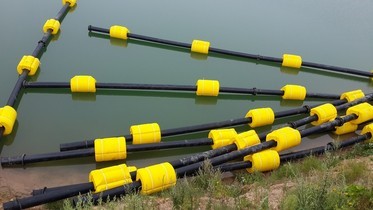

Pipeline floats ready for operation

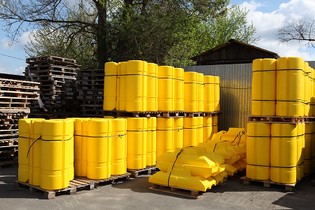

Floats on stock

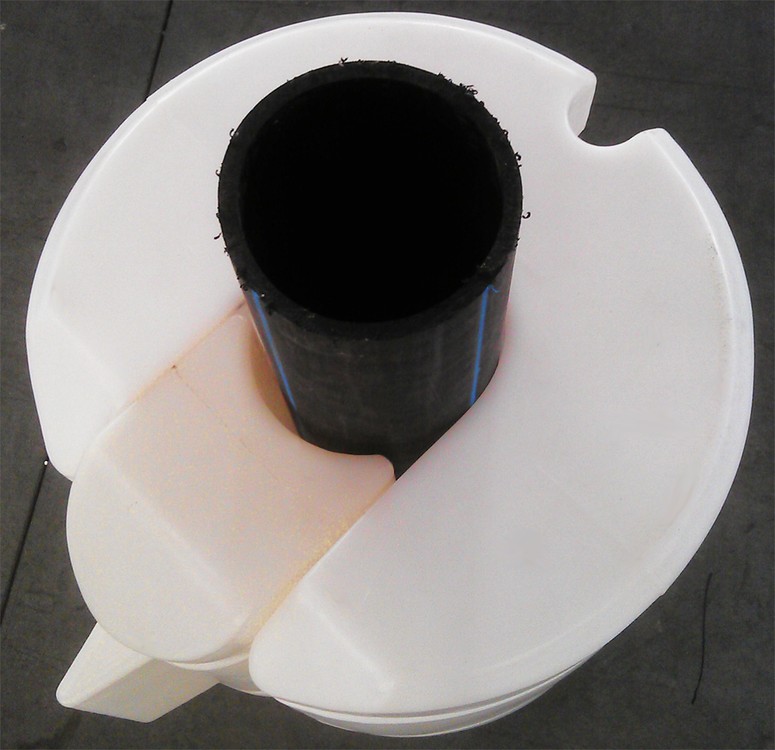

Due to the adjustable top part of the float you can change the tube height and pushes the pipe tightly to the lower part of float:

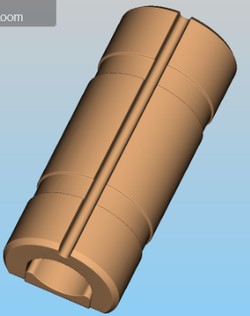

Voltage cable holder on the top of each float
Why choose our floats:
- Filled with EPS (Expanded Polystyrene) 25
- Module maintains it`s shape and is resistant to mechanical deformations
- Compared to air-filled modules, our module retains floatation properties in case of hole
- Fast to mount
- Operational temperature from - 60°C to + 60°C
- Environmental friendly
