PE pipe float 220-420 mm

SKU
DRIJVER-AH-CH-SERIE

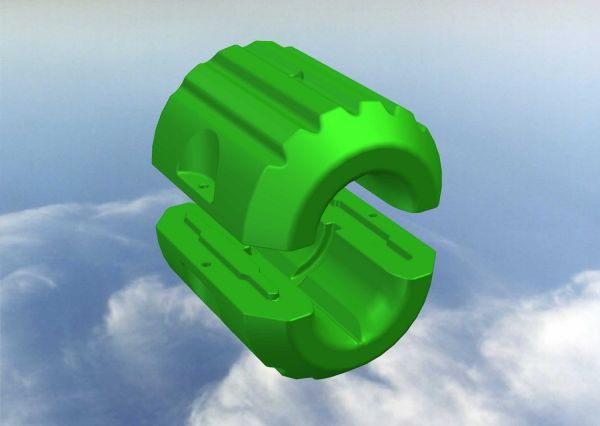

Plastic pipe float series AH & CH, inner diameter 220 to 420 mm

Developed for heavy applications on both inland water and outside water. For use on pipes and pipes with a diameter of 220 mm up to and including 420 mm where a large buoyancy is required. The large outside diameter in combination with the length of 800 mm provides extra buoyancy.

PE pipe float series AH & CH, inner diameter 220 to 420 mm



The plastic PE pipe float from DFS can be used for pipes, tubes, etc. These DFS plastic PE pipe floats are very flexible and very robust and you can use these plastic pipe floats in many ways within your work.

The tension-free fusion of polyethylene in a 3-dimensional rotating movement results in high-quality, hollow and very strong plastic products. This also makes the products stress-free. One of the questions we received was to develop a new floater that could meet the new, higher requirements of the dredging industry. Using the most modern 3D design techniques and, among other things, the use of finite element calculations in combination with various material studies, Dutch Floating Systems has developed a new series of floats for the dredging industry in recent years. The use of new materials in combination with the many years of experience of the most famous dredging companies has led to the following new models, each developed for a specific application. With these "high-tech" series, we think we can deliver a serious improvement on the existing package of floats.

The AH & CH series has been developed for heavy applications on both indoor and outdoor water. For use on pipes and pipes with a diameter of 220 mm up to and including 420 mm where a large buoyancy is required. The large outside diameter in combination with the length of 800 mm provides extra buoyancy. The proven method of fixing with standard bolts and nuts ensures multiple use and a long service life. The choice for the use of specially developed material ensures a strong, yet flexible float, resistant to extreme loads.

If you have become interested, do not hesitate to contact us.

Type   I/D
(mm)
O/D
(mm)
Lengte
(mm)
Gewicht
(kg)
Volume
(ltr)
Drijfvermogen (kg)
Prijs
(euro)
AH220-700-800   220 700 800 30 230
210
op aanvraag
AH250-700-800   250 700 800 30 228
198
op aanvraag
AH280-700-800   280 700 800 30 220
190
op aanvraag
CH315-800-800   315 800 800 40 296
257
op aanvraag
CH350-800-800   350 800 800 40 280
242
op aanvraag
CH420-800-800   420 800 800 40 250
212
op aanvraag

I / D = inside diameter O / D = outside diameter
